MAXON's Electro-Pneumatic Shut-Off Valves are ideally suited for reliable shut off of various liquids. MAXON gas valves require only a power source from your burner management system or DCS and an instrument air feed. MAXON shut off valve operating pressures and valve Cv's are among the highest available in the industry meaning you can move more fuel in smaller size valves than competitive products.

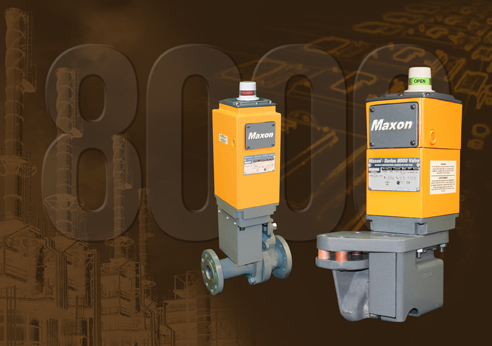

1. Series 8000 Air Actuated Valves for liquid service
Pneumatically actuated valves with powerful closing spring for reliable operation
Compact design with integral solenoid, quick exhaust and position switches that protects components, simplifies piping and minimizes space requirements
Hazardous Location approved: Intrinsically Safe for Class I, Div. 1 (and ATEX Zone 2/22 when ordered with the ATEX IS solenoid); Non-Incendive for Class I, Div. 2
Top mounted 360-degree open-shut visual position indication
Cast iron and carbon steel body assemblies with internal trim options to handle general purpose or severe fluids
Ambient temperature ranges of -40°F (-40°C) to 140°F (60°C); Fluid temperature range of -40°F (-40°C) to 550°F (288°C)
Application flexibility provided with 3/8" (DN10) through 2" (DN50) line sizes & line pressures up to 740 psig
Actuator assemblies are field-replaceable and available in 120VAC 50/60 Hz, 240VAC 50/60 Hz, and 24VDC (with low power option), rated for NEMA 4, NEMA 4X and IP65
